599H

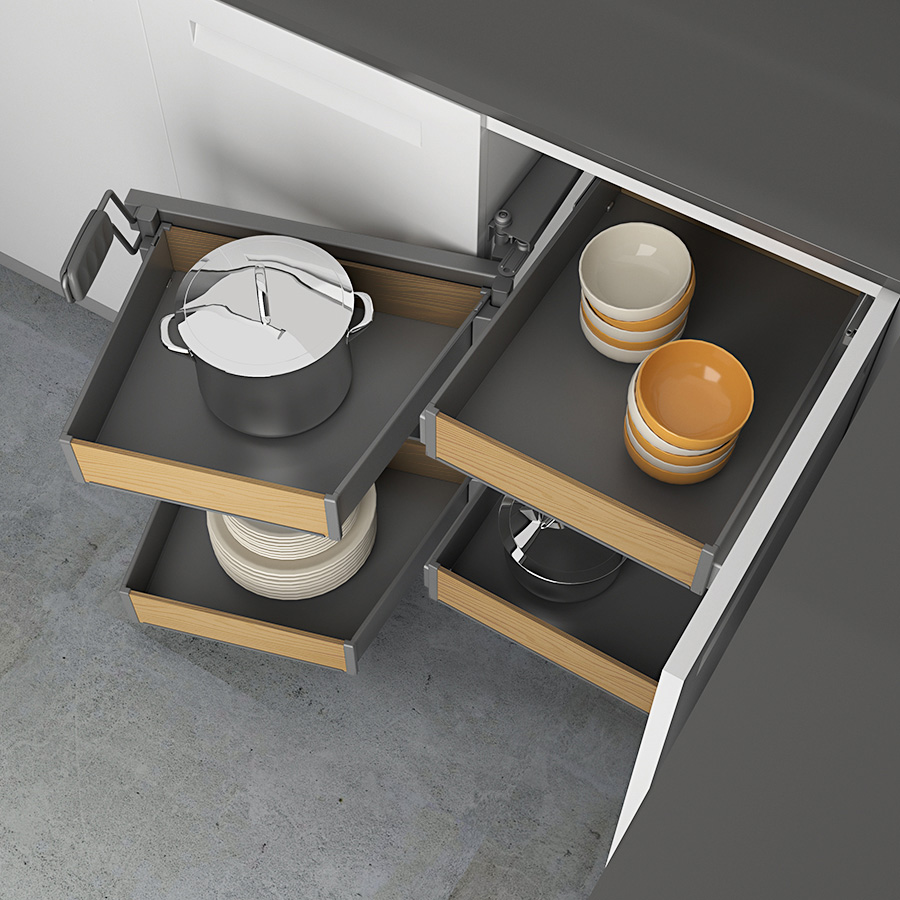

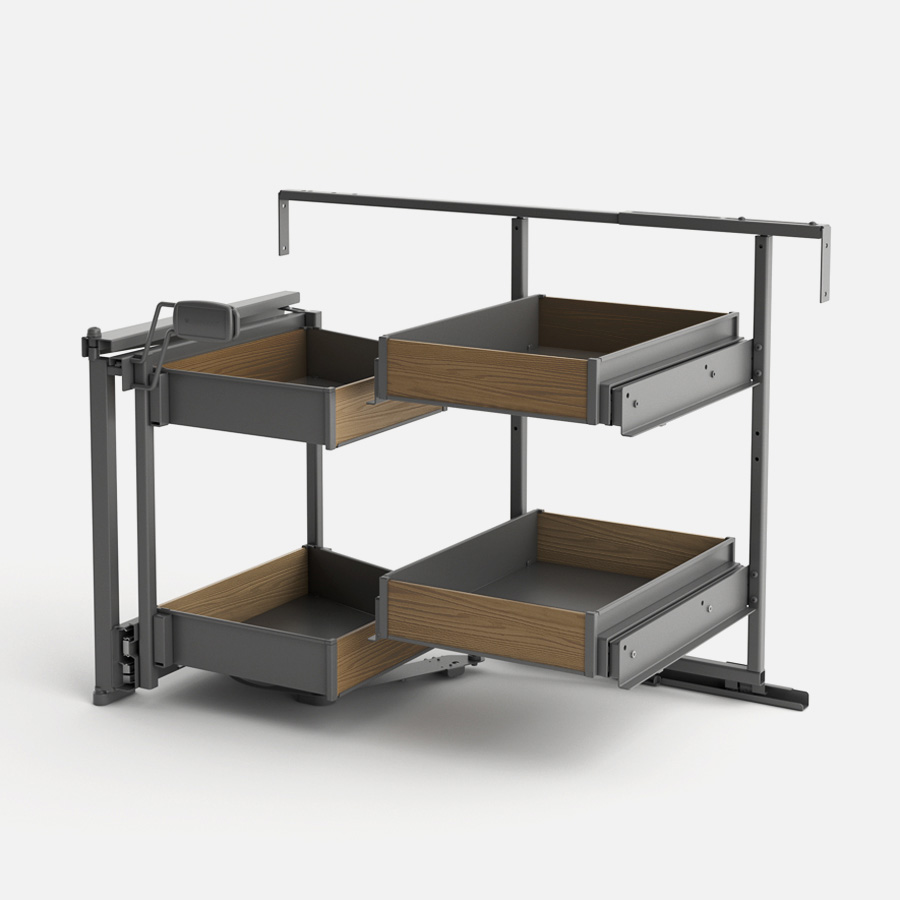

Double corner mechanism with inner pull-out baskets for hinged doors

Mechanism with high load capacity runner with soft-close system
Internal basket runners with soft-close system
Maximum load per basket: 9 kg (inner), 7 kg (outer)
The upper external basket can be adjusted in height
Installation depth: 505 mm
Installation height: 670 mm
Non-reversible product

Product Details

  • W
    K* (min-max)
  • 450
    405
    860-1020
  • 500
    450
    860-1020
  • 600
    550
    945-1250

Finishes available (baskets/side profiles/mechanism): Orion/Wood/Orion

K* = cabinet internal widht
